Gravity Balance Tester
Gravity Balance Tester
type
laboratory
production
iran
brand
Persia Sanat Electronic
Category
Check and test
Application
PET bottles, Glass bottles, Metal cans
Product Introduction

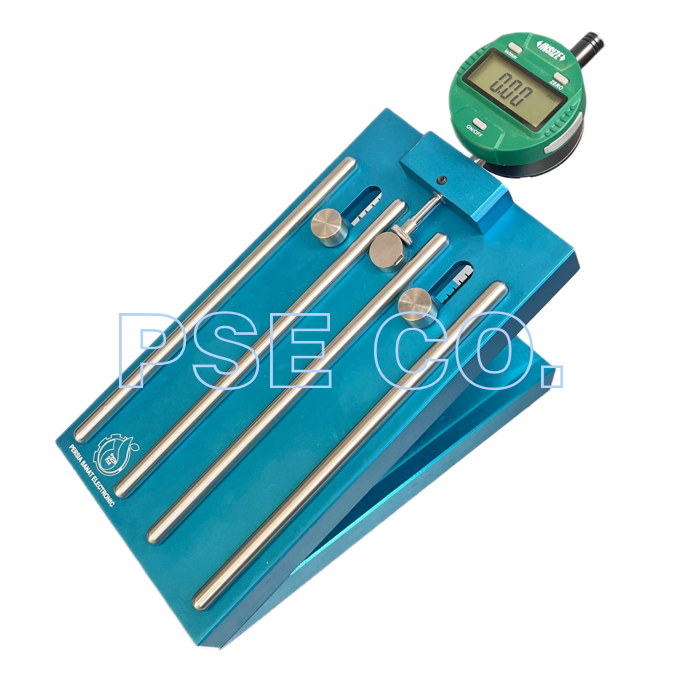

The Bottle Stability Tester is a practical quality control instrument designed to evaluate the balance and stability of various bottles and containers. Bottle stability depends on material distribution, the quality of the blow molding process, and proper bottle base formation, all of which play an important role in bottle performance during filling, packaging, transportation, and storage.
By measuring the bottle’s instability angle, this device helps identify bottles with design or production process defects, contributing to improved final product quality and reducing potential problems in production lines.
Technical Specifications
| No. | Specification | Description |
|---|---|---|
| 1 | Equipment Type | Bottle Stability Tester |
| 2 | Equipment Dimensions | 115 × 175 × 215 mm |
| 3 | Equipment Weight | Approximately 850 g |
| 4 | Power Supply | No power supply required |
| 5 | Test Type | Measurement of bottle stability and balance |
| 6 | Maximum Sample Diameter | 170 mm |
| 7 | Angle Measurement Range | 0 to 30° |
| 8 | Measurement System | Movable platform with leveling indicator |
| 9 | Operating Principle | Mechanical |
| 10 | Test Samples | PET bottles, polyethylene bottles, glass bottles, and lightweight metal cans |
| 11 | Standard | Compliant with PET container standard No. 11610 |
Device features
- Fast and accurate measurement of bottle stability and balance
- Suitable for PET, polyethylene, and glass bottles, as well as lightweight metal cans
- Equipped with a leveling indicator for improved test accuracy
- Capable of determining instability angles up to 30°
- Simple, lightweight design with no power supply required
- Very low maintenance cost
