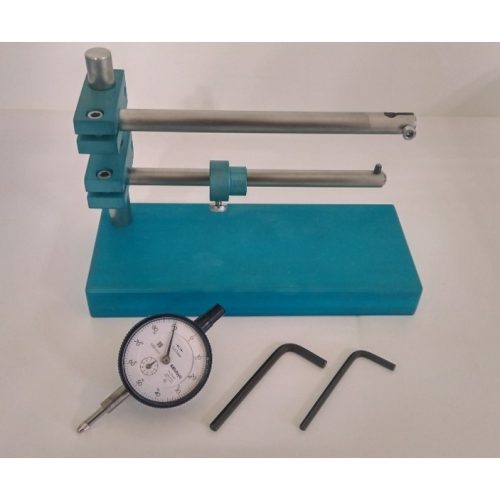

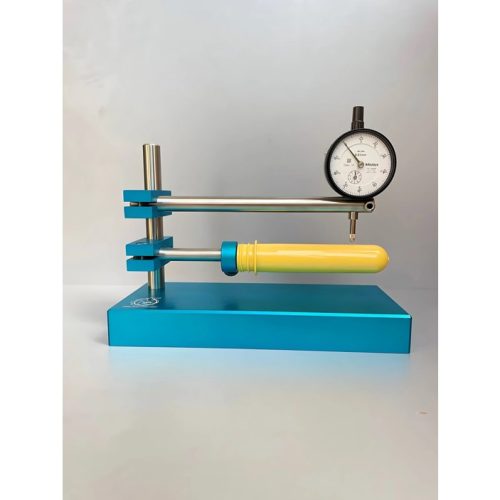

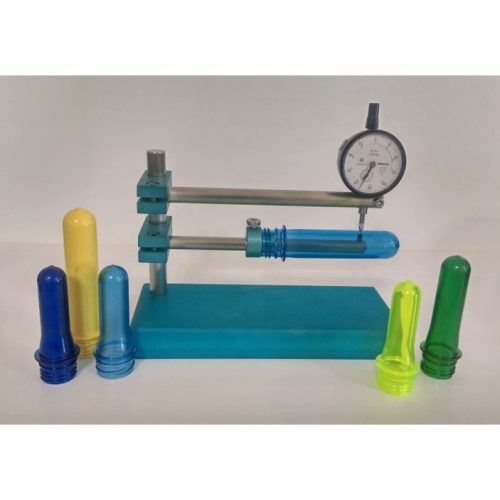

Preform Thickness Gauge
Preform Thickness Gauge
type
laboratory
production
iran
brand
Persia electronics industry
Category
Check and test
Application
PET preform and bottle
Capabilities
- Checking the uniformity of materials in the injection molding process
- Ability to measure the wall thickness of preforms with different openings
- Appropriate weight of the device due to the use of anodized aluminum in the body and connection blocks
- Use of an analog indicator with an accuracy of 0.01 mm (Original Mitutoyo)
- Ability to adjust in vertical and horizontal directions
- Control the thickness in the body and neck of PET preforms and detect defects caused by pressure, injection temperature or mold runner design
- According to the standard for polyethylene terephthalate containers No. (11610)
Device definition
This device can check the thickness of the preform body and its fluctuations.
Description
Using this device, the thickness of the preform body and its fluctuations can be examined and the production of preforms with large thickness differences can be prevented, which ultimately results in thickness differences in the bottle and can even cause a severe reduction in the bottle’s strength.
